| Model parameter |

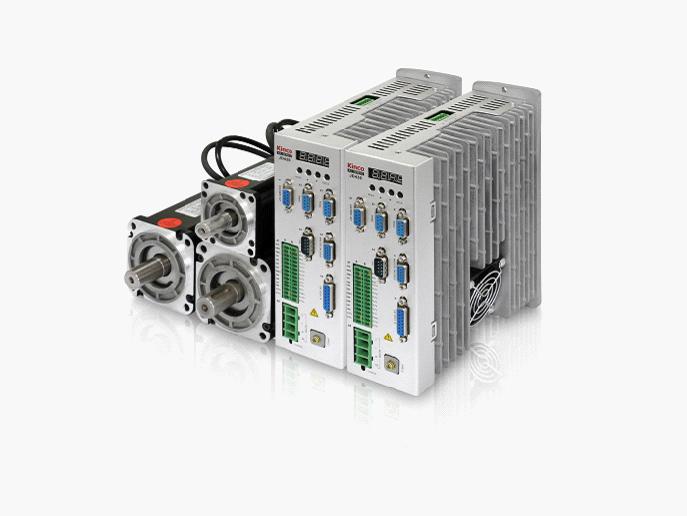

JD430-AA-000 |
| Power |
Main supply voltage |
AC220V±15% 50~60Hz |
| Control circuit voltage |
DC18V~DC30V |
| Current |
Rated current(RMS) |
10A |
| Peak current(PEAK) |
27.5A |
| Brake chopper threshold |
DC380V±5V |
| Over-voltage alarming threshold |
DC400V±5V |
| Under-voltage alarming threshold |
DC200V±5V |
| Cooling method |
Cooling with fan |
| Size(width*hight*thicker) |
220 x 195 x 66 mm |
|
Operation
Environment
|
Operating temperature |
0~40℃ |
| Storage temperature |
-10℃~70℃ |
| Humidity(non-condensing) |
5~85% |
| Protection class |
IP20 |
| Installation environment |
Installed in a dust-free,dry and lockable environment |
| Installation mode |
Vertical installation |
| Altitude |
Below 1000m |
| Atmospheric pressure |
86kpa~106kpa |
| Genernal function |
Digital operation panel |
4 buttons and 4 LED display |
| External I/O |
8 digital input 12.5~30V. 7 digital output: OUT1, OUT2, OUT7 are 0.1A and OUT3 OUT6 are 0.5A . The input and outpput function can be defined freely. |
| Analog input |
2 analog input, can be used to control speed and torque, the input rang is -10V~10V |
| Encoder signal output function |
Output encoder signal and master encoder signal are optional, can be used in the multiple axises synchronization application, the max. output frequency is 2MHz |
| Master singnal input function |
Can receive 3.3V~24V pluse/direction signal, CW/CCW signal. And the RS422 difference signal, the max. input frequency is 4MHz |
| Feedback signal |
Incremental A.B.Z.U.V.W.A/.B/.Z/.U/.V/.W/. Signal. |
| RS232 |
THe max. baudrate is 115.2 KHz, use JD-PC software to communicate with PC |
| RS485 |
THe max. baudrate is 115.2 KHz, use Modbus RTU protocol to communicate with control |
| CAN BUS |
THe max. baudrate is 1MHz, use CANopen protocol to communicate with controller |
| STO function |
STO port can be connect to safe controller, switch, and sensor to protect the system |
